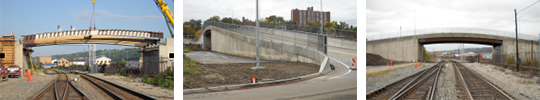

McKeesport Fly-Over Bridge
ALCM, LLC (ALCM) construction management staff played a vital role in completing the new construction of the $5.7 million McKeesport Fly-Over Bridge in Allegheny County on schedule and on budget.
Working closely with the contractor, utility companies, local authorities, regulatory agencies and railroads, ALCM assisted on the following project components:
- ALCM was responsible for coordinating and scheduling a pre-erection meeting for a safe girder installation over active CSX and Union Railroads.
- ALCM arranged for on-site soil sampling and TCLP analysis for hauling residual waste from the project to an approved waste site.
- ALCM prescheduled utility meetings with the contractor to expedite the relocation of existing utilities.
Significant Features:
- Single Span, 98 foot total length, 49.5 foot total width
- Full Height Abutments
- Composite Steel Girders, Cast in Place Concrete Deck
- Beveled Sole Plates on Laminated Elastomeric Pads
- 30,063 LF of Steel H-Bearing Piles
- Designed to accommodate traffic and pedestrians into the RIDC Industrial Center and double stacked cargo trains
- Completed on Schedule
- Completed on Budget
- New bridge structure is over active CSX and Union Railroads
- ClientAllegheny County Department of Public Works
- LocationMcKeesport, PA
- Value$888,259
- Work Tasks / Services
- Project management, project documentation, construction inspection, material testing
- Prepared and processed current and final estimate payments
- Prepared and processed change orders
- Conducted and documented weekly coordination meetings and monthly progress meeting
- Documented, reviewed and processed all project submittals
- Completed project close-out activity including as-built drawings and file consolidation
